19mm 1NO Momentary Ring Illuminated IP 68 Waterproof Sealed Piezo Switch
Quick Details:
— The wire length can be customized ,please inform us by message.
— It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
— Momentary button: Press the power on, release the hand power on of off, the button spring to original position.
Product Parameter
| Mounting Cut-out | 22mm +0.2/+0.0 mm |
| Head shape | Flat Head (High flat head needs to be customized) |
| Switch Combination | 1NO |
| Operation type | Momentary (Latching can be chosen) |
| Illuminated type | ring illuminated |
| Illuminated color | Red{blue,yellow,orange,white can be choose) |
| Lamp voltage | 12V (Other voltage 1.8V/2.8V/5-6V/12V/24V/36V/110V/230V can be choose) |
| Body and Actuator material | STAINLESS STEEL |
| Approval | CE,CCC,Rohs,Reach,IP68 |
| led type | ring symbol |
| led voltage | 3v-24v |
| led color | Red Green Blue Yellow White |
| led life | more than 40000 hours |
Product size:

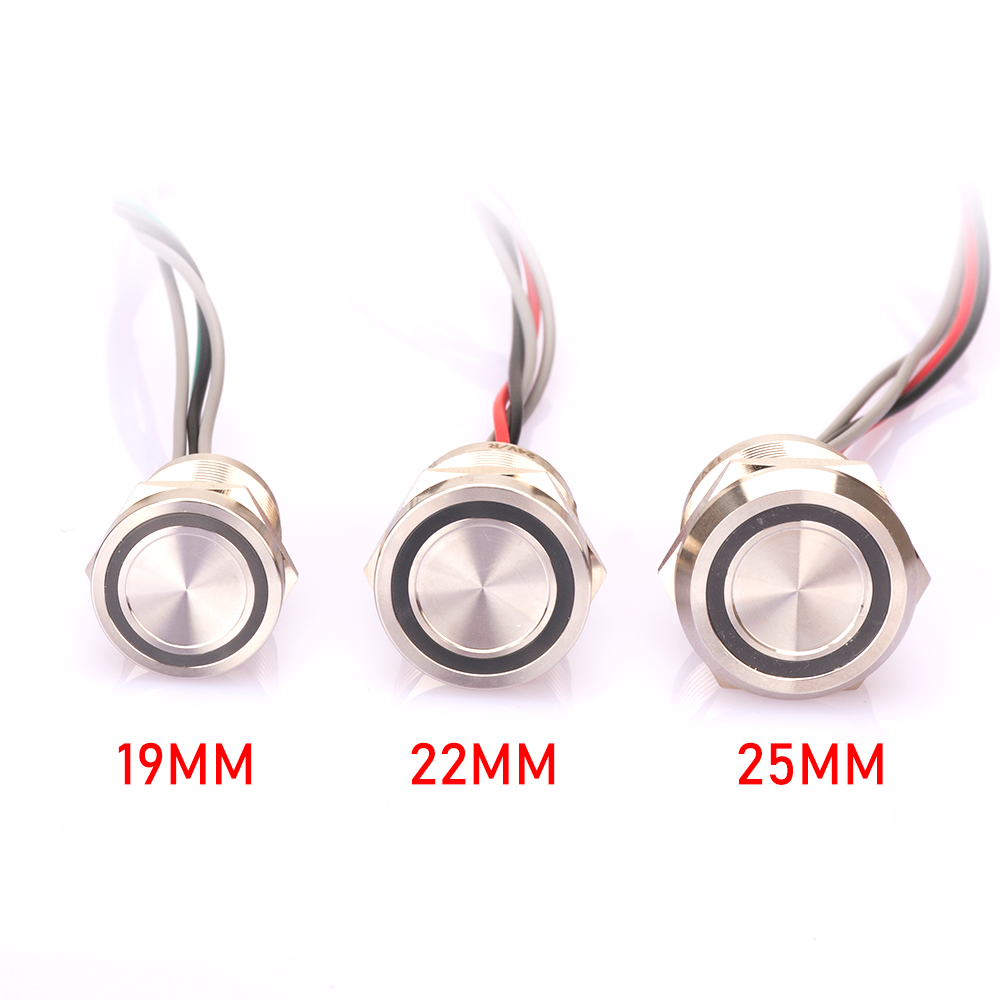

Product display:
F&Q:
——Q:How about your Product Quality?
A:our products quality is good and most of all products approval of CE and ROHS. After you use it, you will know more understanding for our quality.
——Q: What is Latching function?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
——Q: Can you provide samples ? Are the samples free ?
A: Yes, we can provide samples. Normally, we provide 1-3pcs free samples for test or quality checking.But you have to pay for the shipping cost. If you need many items, or need more qty for each item, we will charge for the samples
