12mm 316L Stainless Steel Piezo Switch
1. 16A/250VAC ,3500W Nonreactive Load
2. Optional connector,To ensure contact performance,reduce waste of labor;
3. With concave design,operation is more convenient;
4. With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5. Waterproof and dustproof grade up to IP67;
6. Mechanical life: up to 600,000times,it can work at -30℃~80℃;
7. 1NO function
8. It has applied of many patents ,CCC,CE approved;
9. 19mm aluminum oxide black ring power symbol illuminated momentary
Product Parameter
| Project | Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Action trip | 3.5mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 6N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤7.5mm |
| Dielectric Strength | 1000VAC min | Nut torque | 5~14N.m |
| Ambient Temperature | -30℃~+80℃ | Outshell/Press Key | Stainless Steel/aluminum oxide |
| Protection Levels | IK10 | Diffuser | PC |
| Electrical Life | Rated:0.5A250VAC-100,000 times Rated:10A250VAC-30,000 times Reated:20A250VAC- 10,000 times | Nut Base Seat/ Bottom Seat | Nickel brass PA66 |
| Mechanical Life | Momentary-150,000 times Latching-500,000 times | Pins Contact | PA66 H65 Silver Plated |
| Waterproof | IP67 | Spring | Improved steel wire |
| led type | ring symbol |
| led voltage | 3v-24v |
| led color | Red Green Blue Yellow White |
| led life | more than 40000 hours |
Product size:

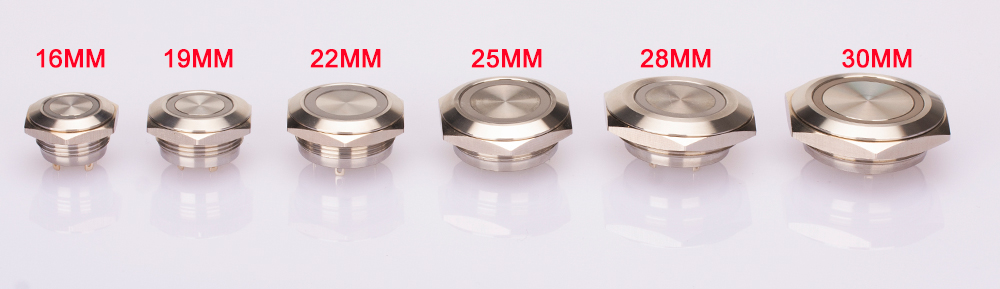

Product display:
F&Q:
Q: Can you provide samples ? Are the samples free ?
A: Yes, we can provide samples. Normally, we provide 1-3pcs free samples for test or quality checking.But you have to pay for the shipping cost. If you need many items, or need more qty for each item, we will charge for the samples
Q: Can you make the switch as our requirement?
A: Yes, we can. We are professional switch manfacturer with over 20 years research experience.
Q : What about your delivery time?
A: We have a lot of products in stock.We can send the stock products in 3 work days.If without stock,or stock is not enough, we will check the delivery time with you
